Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane

Type : Geomembranes

Warranty : 1 Year

After-sale Service : Online technical support, Onsite Installation, Onsite Training

Project Solution Capability : graphic design, 3D model design, total solution for projects

Application : Warehouse, Concrete Embedment

Design Style : Traditional

Place of Origin : Shandong, China

Brand Name : WT

Model Number : EL10

Surface Width : 10cm

Production Method : Extrusion

Height of the profile : 4cm

Raw Material : 100% Virgin Hdpe

Usage : HDPE /LLDPE geomembrane

Length /pc : 3m or customerized

Color : Black (UV resistant)

Product Name : HDPE Geolock E polylock for Concrete Embedment Geomembrane Attachment

Keyword : E Lock,Geolock

Packaging Details : Pe film

MOQ : 7000 meters

Price : $4.20/meters

Contact Now

100% virgin PE resins made E-Polylock /Geolock

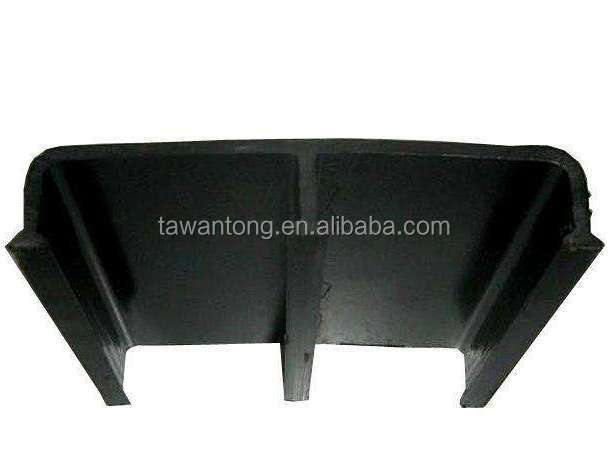

HDPE geolock s used for HDPE geomembrane attachment in construction. It is an extruded HDPE concrete emebedement strip with an E profile shape. The smooth surface with width 15cm or 10cm is for welding the polyethylene sheets while the 3-4cm height fingers are used to insert the web concrete to get locked-in and fix the joint with geomembrane to make a complete water-proof banking. It is also called E-lock or polylock. We produce 3 models of the geomembrane attaching use HDPE geolock by 100% virgin resins.OEM design /production is welcome.

Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane

specification

Model EL10

Chemiecal Resistance : excellen

RAW MATERIAL : HIGH DENSITY POLYETHYLENE
MELTING POINT : 135C
DENSITY : 0.951g/cube cm
TENSILE STRENGTH AT TEAR : 25Mpa
TENSILE STRENGTH AT BREAK : 20Mpa
ELONGATION RATE AT BREAK : 800%

Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane

EL-15

Standard length: 3meters
Width : 15cm
Anchor finger length : 3cm
Chemiecal Resistance : excellent
RAW MATERIAL : HIGH DENSITY POLYETHYLENE
MELTING POINT : 135C
DENSITY : 0.951g/cube cm
TENSILE STRENGTH AT TEAR : 25Mpa

TENSILE STRENGTH AT BREAK : 20Mpa
ELONGATION RATE AT BREAK : 700%

Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane

ME-15

DENSITY : 0.951g/cube cm
TENSILE STRENGTH AT TEAR : 25Mpa
TENSILE STRENGTH AT BREAK : 20Mpa

ELONGATION RATE AT BREAK : 700%

Width: 14cm

Anchor finger legnth: 3.3cm

Length per pc : 3m or customerized

Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane

Certifications

Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane We have passed ISO 9001, SGS and CE Certificate, etc.

Our Customers

Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane

Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Egypt, India, Pakistan, Canada, New Zealand and other countries. We also welcome OEM and ODM orders.

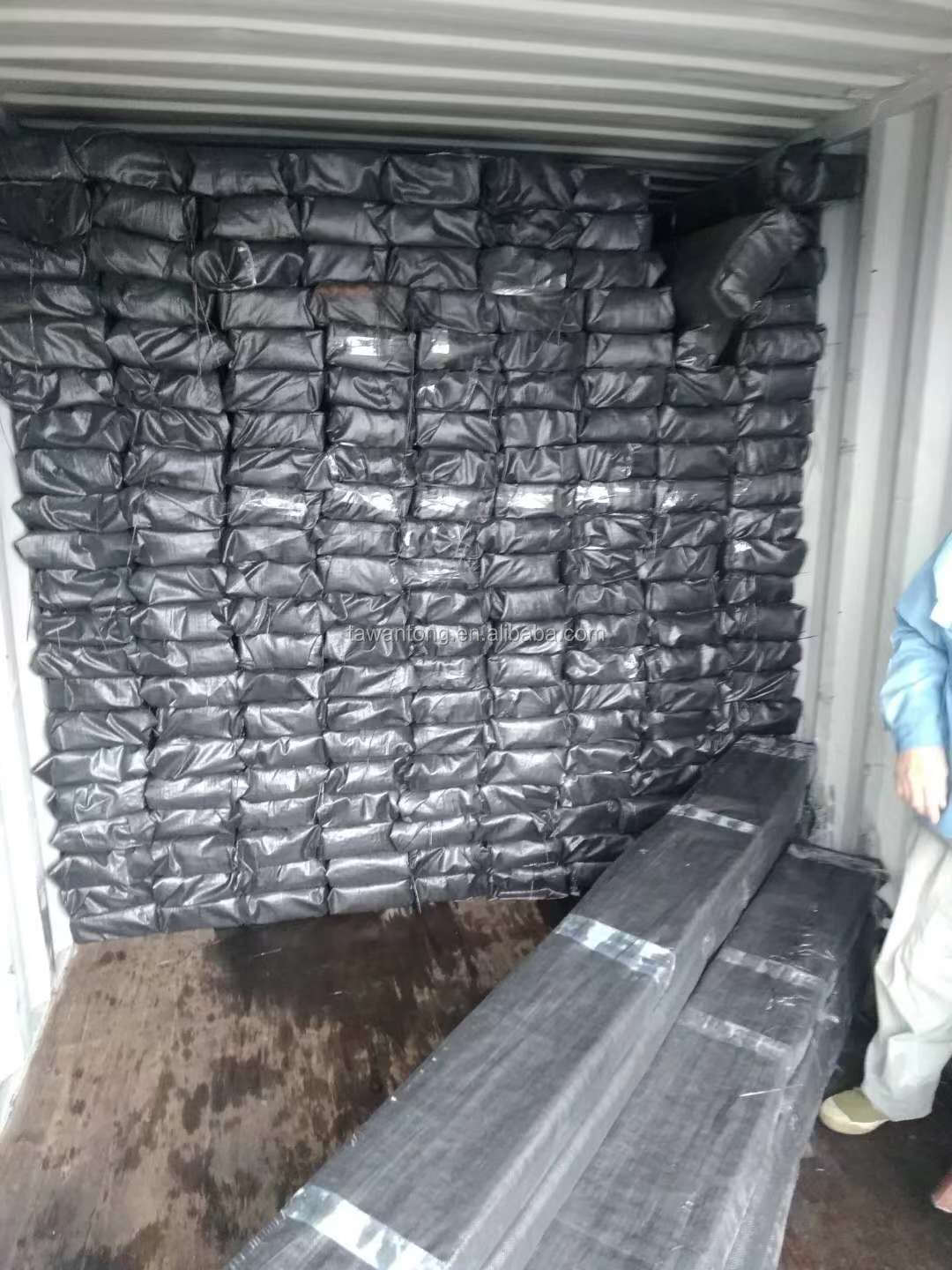

Packaging& Shipping

Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane

Our Contact

Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane

Extrusion Method E Lock Ensuring Strong Attachment for Concrete Embedment Geomembrane Images
